Multiple Choice
Identify the
choice that best completes the statement or answers the question.
|
|
|
1.
|
Find the square of 11.
|
|
|
2.
|
Find  .
|
|
|
3.
|
Which whole number is  closer to?
|
|
|
4.
|
Estimate  to 1 decimal place.
|
|
|
5.
|
The area of square P is 52 cm2.
Square Q has an area equal to one
quarter the area of square P.
Find the approximate side length of square Q.
Give your answer
to 1 decimal place.
a. | 3.6 cm | b. | 5.1 cm | c. | 13 cm | d. | 1.8
cm |
|
|
|
6.
|
Find the length of the hypotenuse.
|
|
|
7.
|
Find the length of the leg labelled r.
|
|
|
8.
|
Find the length of the diagonal, d, in the square. Give your answer to 1
decimal place.  a. | 9 m | b. | 162 m | c. | 18 m | d. | 12.7 m |
|
|
|
9.
|
Use the Pythagorean Theorem to find the area of this square.  a. | 13 square units | b. | 16 square units | c. | 9 square units | d. | 2 square
units |
|
|
|
10.
|
In a right triangle, the length of the hypotenuse is 18 m and the length of one
of the legs is 15 m.
Find the length of the other leg. Round your answer to the nearest
tenth.
a. | 5.0 m | b. | 6.8 m | c. | 9.9 m | d. | 23.4
m |
|
|
|
11.
|
This diagram shows 2 flag poles that are 4.5 m tall. The distance from the top
of the left pole to the base of the right pole is 7.5 m. What is the distance between the 2 flag
poles?  a. | 5.0 m | b. | 6.0 m | c. | 3.0 m | d. | 4.5
m |
|
|
|
12.
|
Find the length of the line segment. Give your answer to 1 decimal
place.  a. | 12.5 units | b. | 157 units | c. | 17 units | d. | 4.1
units |
|
|
|
13.
|

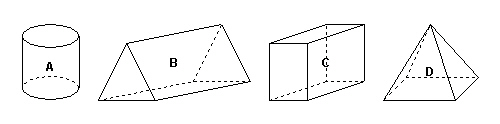

Which object is NOT a prism?  a. | Object A | b. | Object B | c. | Object C | d. | Object
D |
|
|
|
14.
|
How many triangular faces are there in a hexagonal prism?
|
|
|
15.
|
Draw the object that has this net.
|
|
|
16.
|
Draw a net for this object.
|
|
|
17.
|
Find the surface area of this right rectangular prism.  a. | 138 cm2 | b. | 21 cm2 | c. | 280 cm2 | d. | 276
cm2 |
|
|
|
18.
|
Find the surface area of this right rectangular prism.  a. | 156 m2 | b. | 48 m2 | c. | 264 m2 | d. | 132
m2 |
|
|
|
19.
|
A square prism is 12 cm tall. The side length the square base is 7 cm.
What
is the surface area of the prism?
a. | 434 cm2 | b. | 336 cm2 | c. | 588 cm2 | d. | 104
cm2 |
|
|
|
20.
|
The total area of the 3 rectangular faces of a right triangular prism is 56
cm2.
The total surface area of the prism is 68 cm2. Find the area of each
triangular face.
a. | 6 cm2 | b. | 12 cm2 | c. | 1.2 cm2 | d. | 49.3
cm2 |
|
|
|
21.
|
The length of one edge of a cube is 5 cm. What is the volume of the cube?
a. | 150 cm3 | b. | 125 cm3 | c. | 60 cm3 | d. | 75
cm3 |
|
|
|
22.
|
A right rectangular prism has length 6 cm, width 3 cm, and height 4 cm.
If
the length is doubled, what is the new volume of the prism?
a. | 288 cm3 | b. | 144 cm3 | c. | 432 cm3 | d. | 576
cm3 |
|
|
|
23.
|
Find the volume of this triangular prism.  a. | 108 cm3 | b. | 216 cm3
| c. | 178.8 cm3 | d. | 89.4 cm3
|
|
|
|
24.
|
The area of the base of a right triangular prism is 14.5 cm2 and the
length of the prism is 6 cm.
Calculate the volume of the prism.
a. | 87 cm3 | b. | 43.5 cm3 | c. | 174 cm3 | d. | 20.5
cm3 |
|
|
|
25.
|
A paper cup has the shape of a perfect cylinder that is 6.9 cm tall and 3 cm
across. Find the area of paper needed to make the cup. Use  and give the answer to the
nearest square centimetre. a. | 65 cm2 | b. | 72 cm2 | c. | 79 cm2 | d. | 53
cm2 |
|
|
|
26.
|
Find the volume of this cylinder. Leave  in your answer.
|
|
|
27.
|
Draw the side view of this object.
|
|
|
28.
|
An object is made using 3 linking cubes. The diagram shows 2 views of the
object. Draw the right side view of the object.
|
|
|
29.
|
This object is made using linking cubes. Draw the top view of this
object.
|
|
|
30.
|
These are views of an object built using linking cubes. Sketch the
object.
|
Short Answer
|
|
|
31.
|
Which whole numbers between 67 and 141 are perfect squares?
|
|
|
32.
|
Find 82.
|
|
|
33.
|
Find a square root of 900.
|
|
|
34.
|
List the factors of 70 in ascending order.
|
|
|
35.
|
What is a factor?
|
|
|
36.
|
Find  .
|
|
|
37.
|
The length of the hypotenuse of a right triangle is  m. The lengths of the
legs are whole numbers of metres. What are the lengths of the legs?
|
|
|
38.
|
A boat sails due south from a port at a steady speed of 9 km/h.
The wind
blows the boat due west at a speed of 3 km/h.
How far is the boat from the port after 1 h?
Give your answer to 1 decimal place.
|
|
|
39.
|
A line segment joins points P(–1, –7) and Q(7, 3). Determine the
length of PQ to 1 decimal place.
|
|
|
40.
|
Name the polyhedron that can be made from this net.
|
|
|
41.
|
An open box has the shape of a right rectangular prism. The net for the box is
shown. Find the area of the material required to make the box.
|
|
|
42.
|
A right rectangular prism is made using 10 centimetre cubes. a) What are the possible dimensions of the
prisms?
b) What are the surface area of the prisms?
|
|
|
43.
|
The 2 triangular faces of this prism are isosceles triangles with base length 6
cm and height 12 cm. Calculate the surface area of the prism.
|
|
|
44.
|
Find the surface area of this right rectangular prism.
|
|
|
45.
|
Find the volume of this square prism.
|
|
|
46.
|
The rectangular prism has dimensions 14 cm, 9 cm, and 7 cm. It is divided
into 2 congruent triangular prisms along the diagonal shown. Find the volume of each triangular
prism.
|
|
|
47.
|
A circle has radius 18 cm. Find the circumference to the nearest
centimetre.
|
|
|
48.
|
An open storage tank is cylindrical with height 13 m and diameter 22 m.
The
outside curved surface area will be given 3 coats of paint.
Calculate, to the nearest square
metre, the total area to be painted.
|
|
|
49.
|
These are the top, front, and right side views of an object built using linking
cubes. Sketch a 3-D picture of the object.
|
|
|
50.
|
An object is built using linking cubes. The diagram shows the front and
right side views of the object. Sketch a 3-D picture of the object.
|
Problem
|
|
|
51.
|
A square park has area 120 m 2. a) What are the dimensions of the park? Give
your answer to the nearest metre.
b) If fencing costs $18.50/m, how
much would it cost to install a fence around the park?
Show your work.
|
|
|
52.
|
A rectangular carpet measures 7.2 m by 5.5 m.
Calculate the length of the
diagonal. Give your answer to the nearest tenth.
|
|
|
53.
|
Calculate the radius of the cylinder that can be made from each net. Show your
work. Use p = 3.14 and round your answer to 1 decimal place if
necessary. a)
b)
|
|
|
54.
|
The diagram shows an open box in the shape of a right rectangular prism. A
square hole of side 5 cm is cut out of the front face. What is the total surface area of the box?
Show your work.
|
|
|
55.
|
Find the surface area of this trapezoidal prism. Show your work.
|
|
|
56.
|
A right rectangular prism is made from 20 centimetre cubes. a) What is the volume of the
prism?
b) What are the possible dimensions of the
prism?
|
|
|
57.
|
This diagram shows the front and top views of a triangular prism.  a) What is the volume of
the prism?
b) Two of the prisms are glued together to form a square
prism.
What is the volume of the square prism?
Show your
work.
|
|
|
58.
|
This object is built using linking cubes. Sketch 2 possible top views of this
object.
|
|
|
59.
|
This object is made using 8 linking cubes. Sketch the top, front, and left side
views of the object.
|
|
|
60.
|
The diagrams show the front, side, and top views of a symmetrical solid.
Sketch a 3-D picture of the solid.
|
